Hot Dip Galvanized Steel Ground Anchors / Soil Screw Anchors For Small Windmills

Product Information

1. Heavy Duty 1 1/4″ x 66” with 10” Helix “Galvanized” Screw Anchor Heavy duty 1 1/4″ Shaft and Formed Triple closed Eye

Ideal for corrosive environments in medium to soft Soils – “Hot dipped Galvanized Finish”

2. ground anchor is Commonly used for Mooring Boats and docks, securing vineyard trellises, Large storage
sheds, retaining walls, radio antennas,small windmills, Long Hop runs

3. helix ground anchor Holding strength is based on clay soils which are of hard to medium density. The holding strength is reduced in softer less dense soils and sandy soils.

4. To ensure maximum holding strength, anchor must be installed to full depth with the bottom of eyelet at ground level.

5. Can be installed by hand in softer soils with a “installation bar” harder soils may need power installation equipment

12,000 lb+ pull out resistance in Hard Pan soils- less in less dense soils

Specifications:

Finish: Hot Dip Galvanized

Shaft Diameter: 11/4″

Helix: Single 10″

ID of Eye: 1 1/2″ Forged

Length: 66″ 96"

Earth Screw Helix Anchor dimension and catalogue:

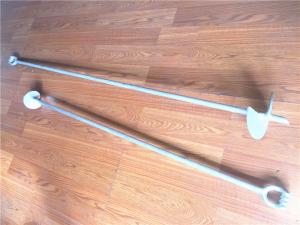

Here are the pictures of the helix earth screw anchor
