Bolted Guy Clamps Parallel Groove Clamp For Pole Line Dead End Guy Wire Clamp

Parrallel Groove Clamp Bolted Guy Clamps For Pole Line Deadend guy wire clamp

Decscription:

• Parallel groove clamp with three bolt suspension cable clamp is used for ADSS cable and wire clamp

• Rolled from carbon steel with straight parallel grooves that will not damage strand

• The clamping bolts have special shoulders to prevent turning when the nuts are tightened

• Constructed of high quality steel, hot-dip galvanized

• used for deadend cable clamp with three bolted guy clamp

• there are one bolt ,two bolts and three bolts guy wire clamp

• Item	Bolted Guy Clamps
  Application	Deadend Hardware
  Material	Malleable cast iron
  Process	Casting + Machining + Surface treatment
  Thickness of Zinc	More than 86 micron
  Quality	Tensile strength and well durable
  Certificate	ISO9001:2008 / BS729
  Package	Plastic Bag/ Carton/ Wooden Box



APPLICATION:

• Parallel grooves trap strand tightly without marring. Plate halves align evenly for easy application. Each bolt has a shoulder to prevent turning while tightening.

• Features straight parallel grooves for greater clamping area without damage to guy strand. Bolts have shoulders to prevent turning when nut is tightened. Alternate bolts are reversed for wrench clearance

electric power fittings

transmission line hardware

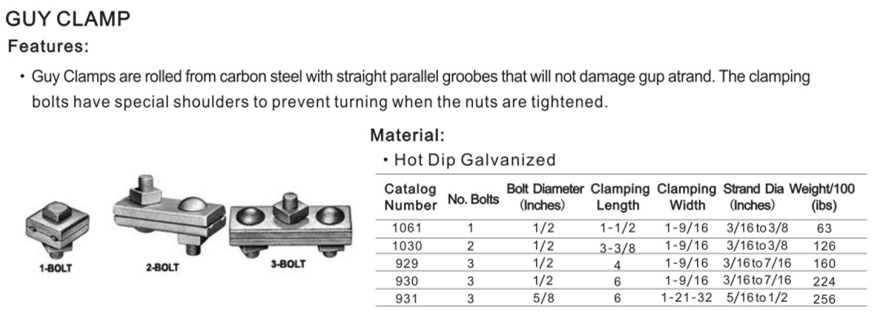

Bolted Guy Clamps Parallel Groove Clamp For Pole Line Dead End Guy Wire Clamp Images
