forged straight eye guy strand thimble eye anchor rods for power line fittings

Brand Name : NTS

Model Number : NTS48

Certification : ISO9001 CE

Place of Origin : China

MOQ : 2000 pcs

Price : as discussed

Supply Ability : 50000per month

Delivery Time : 35 days

Packaging Details : boxes ,100pcs/box with a plastic bag

Material : Q235

Surface : self color

Size : 5/8 3/4 1"

Rod Diameter : 14.2 15.8 20 23mm

Process : forged

Length : 6' 7' 8' 10'

Assembly : Square nut fitted

Contact Now

forged straight eye guy strand thimble eye anchor rods for power line fittings

Product Description

Guy Anchor Rod are made by drop forged with heater machinery the eye head is one body forged with shank and ised for guying utility poles.
Anchor rods, also referred as anchor bolts, concrete embeds or foundation bolts, are embedded in overhead line fittings for the guy strand cable
There are thimble eye ,twin eye anchor rod ,triple eye anchor rod and anchor rod with straight and angled head
concrete foundations to support structural steel columns, light poles, traffic signals, highway sign
structures, industrial equipment and many other applications.

Thimble Eye Anchor Rods -Specifications

Product name	Anchor Rods
Brand name	NTS
Anchor rods standard	Conform to IEEE Standard C135.2 (1999) and Bell Specification CAO 7082.
Hot dip galvanized standard	Meet ASTM Specification A153, Class B1 and C.
Minimum tensile strength	16000 lbs
Applications	1. Each rod is threaded 3-1/2" minimum length
	2. Used for guying utility poles.
	3. For use with expanding and cross-plate anchors
	4. Contoured to prevent damage to strand.
	5. All the rods are assembled with a heavy square nut.

thimble eye or single strand anchor rod sizes:
Type	Rod Dia (Inch) X Length (Ft)
SINGLE STRAND ANCHOR ROD	5/8" X 5'
	5/8" X 6'
	5/8" X 6'
	5/8" X 8'
	5/8" X 7'
	5/8" X 8'
	5/8" X 10'
DOUBLE STRAND ANCHOR ROD	5/8" X 6'
	5/8" X 7'
	5/8" X 8'
	3/4" X 6'
	3/4" X 8'
	3/4" X 9'
	1" X 8'
	1" X 10'
TRIPLE STRAND ANCHOR ROD	3/4" X 8'
	3/4" X 9'
	1" X 8'
	1" X 10'

Packaging & Shipping

1. Packaging: Usually we shipping our products in 20ft’ container for Anchor Rods, or according to your demand.
2. Shipping: 15-30 days after confirming your order.

Here are the pictures for pole anchor rod guy anchor rod used for line fittings guy strand ,guy cable

forged straight eye guy strand thimble eye anchor rods for power line fittings

Forging process of the anchor rods ,guy strand anchor rod, straight anchor rod and angle anchor rod thimble eye bolt :

forged straight eye guy strand thimble eye anchor rods for power line fittings

forged straight eye guy strand thimble eye anchor rods for power line fittings

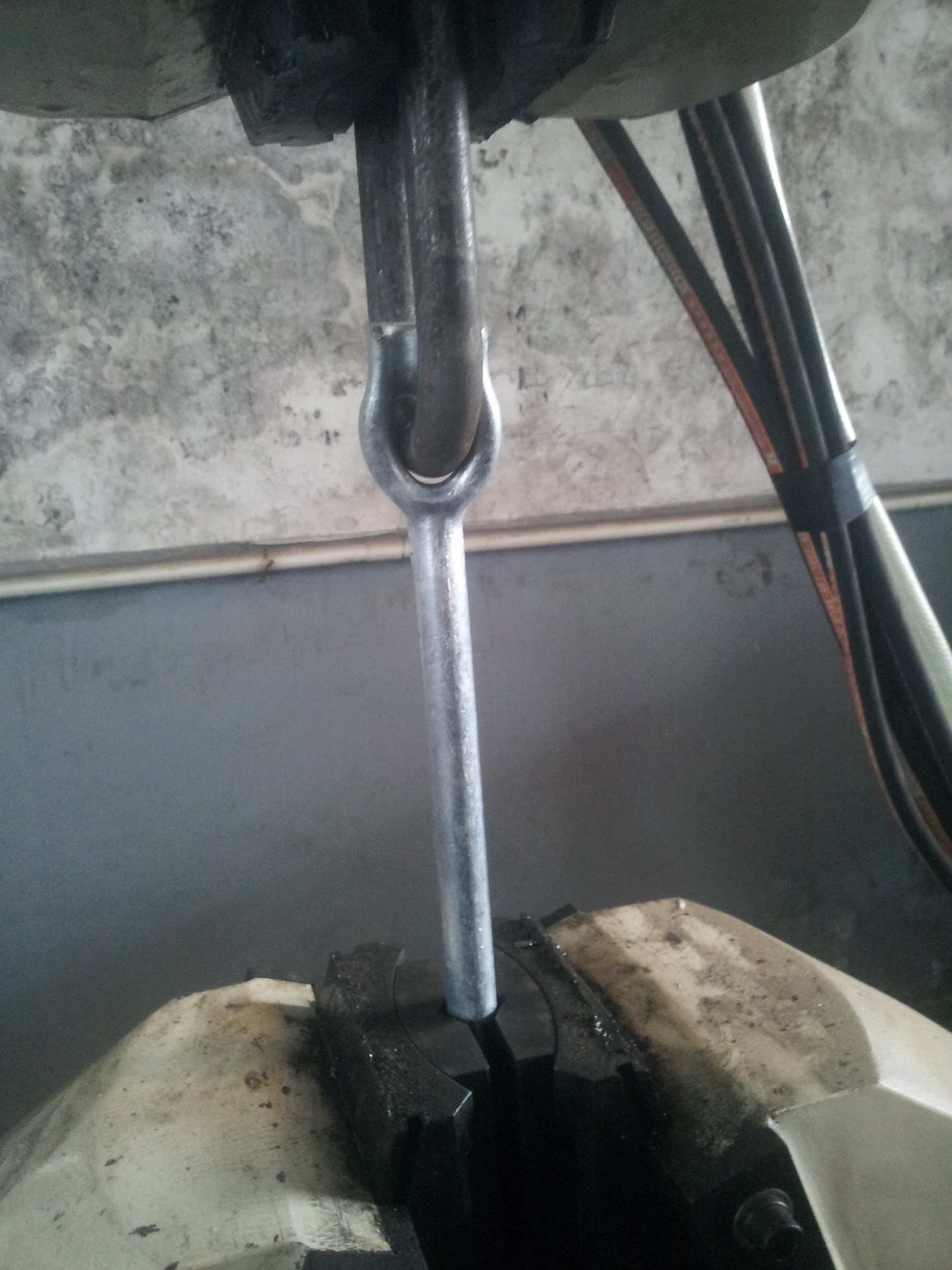

Testing strength for anchor rods made in our testing machine

forged straight eye guy strand thimble eye anchor rods for power line fittings

Our company :

forged straight eye guy strand thimble eye anchor rods for power line fittings
